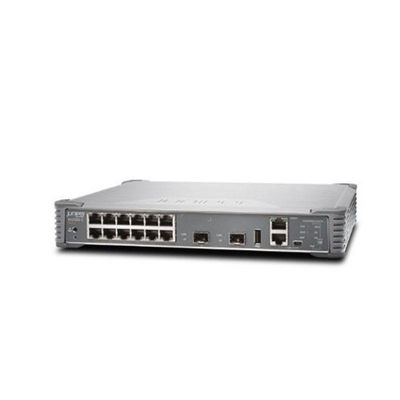

EX2300-C-12P Fanless Poe+ Switch EX2300 Compact 12 Port

EX2300-C-12P Fanless Poe+ Switch EX2300 Compact 12 Port

EX2300-C-12P Fanless Poe+ Switch EX2300 Compact  12 Port
EX2300-C-12P Fanless Poe+ Switch EX2300 Compact  12 Port

Large Image :  EX2300-C-12P Fanless Poe+ Switch EX2300 Compact 12 Port Get Best Price

Product Details:
Place of Origin: China
Brand Name: N/A
Certification: N/A
Model Number: EX2300-C-12P
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $ 660---700 per unit
Packaging Details: add protecting boxes outside original box
Delivery Time: 2---3 Working days
Payment Terms: Western Union T/T Bank Wire
Supply Ability: 100 PCS 1 week
Detailed Product Description
Chassis Height(U): 1 U Certification: CE ISO9001
Model: EX2300-C-12P Key Words: EX2300-C-12
Part Number: EX2300-C Weight: 4kgs
Dimensions: 442 Mm X 420 Mm X 43.6 Mm Ports: 2 X 10 Gig SFP+, 6 X 40/100 Gig QSFP28
Warranty: 1 Year Condition: New Original In Box
Lead Time: 5 Working Days Delivery By: DHL UPS FEDEX ARAMEX TNT EMS
High Light:

HIZON fanless poe+ switch EX2300


HIZON fanless poe+ switch 12 port


HIZON EX2300-C-12P

EX2300-C-12P Gigabit LAN Switch EX2300 Compact Fanless 12-port


Product Description

Table 1 shows the Quick Specs.


The EX2300 switches are fixed-configuration platforms that satisfy a variety of high-performance campus and data center access needs. They offer IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ ports up to 30W.



Form factor Fixed platform
Virtual Chassis configuration consisting of up to four switches
Junos Fusion Enterprise Satellite device
Dimensions (W x H x D) EX2300-24T/24P/48T:
17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm)
1 rack unit

10.98 x 1.72 x 9.4 in (279 x 4.4 x 23.9 cm)
1 rack unit

EX2300-48P: 17.4 x 1.75 x 12.2 in (44.19 x 4.45 x 30.98 cm)
1 rack unit
Backplane speed EX2300-C: 40 Gbps
EX2300: 80 Gbps
Data rate EX2300-C-12T/12P: 64 Gbps
EX2300-24P/24T: 128 Gbps
EX2300-48T/48P: 176 Gbps
Throughput EX2300-C-12T/12P: 47 Mpps
EX2300-24P/24T: 95 Mpps (wire speed)
EX2300-48T/48P: 130 Mpps (wire speed)
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities N/A
100GBASE C form-factor pluggable transceiver (CFP) port densities N/A
Resiliency EX2300: Integrated power supply and fans
EX2300-C: Fanless design improves MTBF by eliminating moving parts that can fail
Operating system Junos OS
Traffic monitoring sFlow
Quality-of-service (QoS) queues/port 8
MAC addresses 16,000
Jumbo frames 9216 bytes
IPv4 unicast / multicast routes 4096 / 2048
IPv6 unicast / multicast routes 2048 / 1024
Number of VLANs 4093
ARP entries 1500


EX2300-C-12P Fanless Poe+ Switch EX2300 Compact  12 Port 0
