Product Details:
Payment & Shipping Terms:
|
| Description: | FPR2140-NGFW-K9 Network Firewall Device Industrial Ethernet Firewall | Key Words: | FPR2140-NGFW-K9 Network Firewall Device |
|---|---|---|---|
| Weight: | 25kgs | Warranty: | 1 Year |
| Package: | Cartoon Boxes | Storage: | 1x 200 GB, 1x Spare Slot |
| Part No.: | FPR2140-NGFW-K9 Network Firewall Device | Color: | Grey Silver |
| USB: | 1 X USB 2.0 Type-A (500mA) | Type: | Wired & Wireless |
| High Light: | Network Firewall Device 2100 Series,Network Firewall Device 500mA,FPR2140-NGFW-K9 |
||

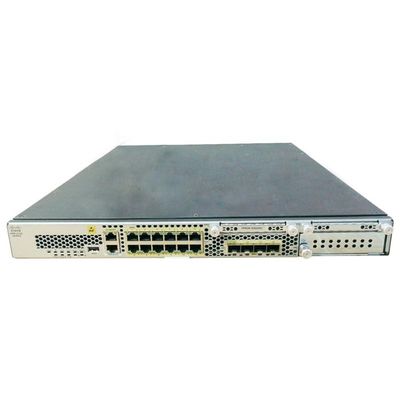

FPR2140-NGFW-K9 Network Firewall Device Industrial Ethernet Firewall
Product Overview
Firepower 2100 Series appliancesThe Firepower 2100 Series is a family of four threat-focused NGFW security platforms that deliver business resiliency through superior threat defense. It offers exceptional sustained performance when advanced threat functions are enabled. These platforms uniquely incorporate an innovative dual multicore CPU architecture that optimizes firewall, cryptographic, and threat inspection functions simultaneously. The series’ firewall throughput range addresses use cases from the Internet edge to the data center.
Network Equipment Building Standards (NEBS)- compliance is supported by the Firepower 2100 Series platform. The 2100 Series platforms can run either the ASA Firewall or Firepower Threat Defense (FTD).
Specification
|
Product Details
|
|
|
Dimensions (H x W x D)
|
1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm)
|
|
Form factor (rack units)
|
1RU
|
|
Integrated I/O
|
12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 10 Gigabit (SFP+) Ethernet interfaces FPR2140-NGFW-K9 Network Firewall Device
|
|
Network modules
|
10G SFP+, 1/10G FTW Options
FPR2140-NGFW-K9 Network Firewall Device
|
|
Maximum number of interfaces
|
Up to 24 total Ethernet ports (12x1G RJ-45, 4x10G SFP+, and network module FPR2140-NGFW-K9 Network Firewall Device
|
|
Integrated network management ports
|
1 x 10M/100M/1GBASE-T Ethernet port (RJ-45)
FPR2140-NGFW-K9 Network Firewall Device
|
|
Serial port
|
1 x RJ-45 console
|
|
USB
|
1 x USB 2.0 Type-A (500mA)
|
|
Power supply configuration
|
Single 400W AC, Dual 400W AC optional. Single/Dual 350W DC optional1
|
|
AC input voltage
|
100 to 240V AC
|
|
AC maximum input current
|
< 6A at 100V
|
|
AC maximum output power
|
400W FPR2140-NGFW-K9 Network Firewall Device
|
|
AC frequency
|
50 to 60 Hz
|
|
AC efficiency
|
>89% at 50% load
|
|
Redundancy
|
1+1 AC or DC with dual supplies
|
|
Fans
|
1 hot-swappable fan module (with 4 fans)2
|
|
Noise
|
56 dBA @ 25C
|
|
Rack mountable
|
Yes. Mount rails included (4-post EIA-310-D rack)
|
|
Weight
|
19.4 lb (8.8 kg) 1 x power supplies, 1 x NM, 1 x fan module, 2x SSDs
|
|
Temperature: operating
|
32 to 104°F (0 to 40°C) or NEBS operation (see below)3
|
|
Temperature: nonoperating
|
-4 to 149°F (-20 to 65°C)
|
|
Humidity: operating
|
10 to 85% noncondensing
|
|
Humidity: nonoperating
|
5 to 95% noncondensing
|
