| Products Name: | C9200L-48T-4X-E Network Processing Engine Ethernet Switch | Weight: | 11.03 Kgs |
|---|---|---|---|
| Keywords: | C9200L-48T-4X-E Network Processing Engine Ethernet Switch | Color: | Grey - Black |
| Part Number: | C9200L-48T-4X-E Network Processing Engine Ethernet Switch | Warranty: | 3 7 3 - D A Y |
| Downlink: | 48-port Base-T | Uplink: | 4-port 10G |
| High Light: | Network Processing Engine 9200L,Network Processing Engine 4 X 10G,C9200L-48T-4X-E |
||

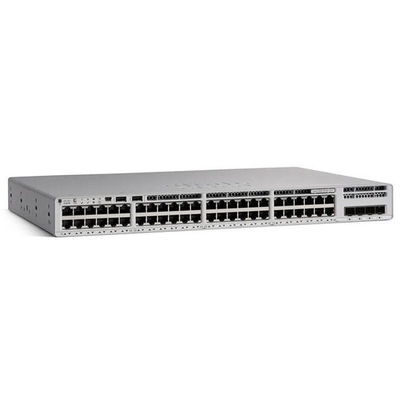

C9200L-48T-4X-E Network Processing Engine Ethernet Switch
Products Overview
C9200L-48T-4X-E Network Processing Engine Ethernet Switch Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200 and Power over Ethernet Plus (PoE+) capability for up to 12 ports for C9200CX. Available in fan less variants for C9200CX. Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200. C9200CX are powered by internal fixed power supply or optional power adapters, when not powered by upstream 802.3bt type4 90W PSE. Flexible downlink options with data, PoE+ or mGig Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX ariants, policy-based segmentation, and trustworthy solutions for the whole C9200 family Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access C9200L-48T-4X-E Network Processing Engine Ethernet Switch
Specification
|
C9200L-48T-4X-E Network Processing Engine Ethernet Switch Specification
|
|
|
Downlinks total 10/100/1000 or PoE+ copper ports
|
48 ports data
|
|
Uplink configuration
|
4x 10G fixed uplinks
|
|
Default primary AC power supply
|
PWR-C5-125WAC
|
|
Fans
|
Fixed redundant
|
|
Software
|
Network Essentials C9200L-48T-4X-E Network Processing Engine Ethernet Switch
|
|
Chassis Dimensions
|
1.73 x 17.5 x 11.3 in
4.4 x 44.5 x 28.8 cm |
|
Virtual Networks
|
1
|
|
Stacking bandwidth
|
80 Gbps C9200L-48T-4X-E Network Processing Engine Ethernet Switch
|
|
Total number of MAC addresses
|
16,000
|
|
Total number of IPv4 routes (ARP plus learned routes)
|
11,000 (8,000 direct routes and 3,000 indirect routes)
|
|
IPv4 routing entries
|
3,000
|
|
IPv6 routing entries
|
1,500
|
|
Multicast routing scale
|
1,000
|
|
QoS scale entries
|
1,000
|
|
ACL scale entries
|
1,500
|
|
Packet buffer per SKU
|
6 MB buffers for 24- or 48-port Gigabit Ethernet models
|
|
Flexible NetFlow (FNF) entries
|
16,000 flows on 24- and 48-port Gigabit Ethernet models
|
|
DRAM
|
2 GB C9200L-48T-4X-E Network Processing Engine Ethernet Switch
|
|
Flash
|
4 GB
|
|
VLAN IDs
|
1024
|
|
Total Switched Virtual Interfaces (SVIs)
|
512
|
|
Jumbo frames
|
9198 bytes C9200L-48T-4X-E Network Processing Engine Ethernet Switch
|
|
Wireless bandwidth per switch
|
N/A
|
|
Switching capacity
|
176 Gbps C9200L-48T-4X-E Network Processing Engine Ethernet Switch
|
|
Forwarding rate
|
261.9 Mpps
|
|
Mean time between failures (hours)
|
503,400
|
