Product Details:
Payment & Shipping Terms:
|
| Model: | ISR4331-V/K9 Commercial Wifi Access Point Ethernet Router UC Bundle PVDM4-32 | Weight: | 15.33 - KGS |
|---|---|---|---|
| Part Number: | ISR4331-V/K9 Commercial Wifi Access Point Ethernet Router UC Bundle PVDM4-32 | Color: | Black - Pure |
| Product Name: | ISR4331-V/K9 Commercial Wifi Access Point Ethernet Router UC Bundle PVDM4-32 | Warranty: | 365 - Day |
| Device Type: | Industrial Ether Router | Packing: | Cartoon Standard |
| High Light: | ISR4331-K9 Commercial Wifi Access Point,Commercial Wifi Access Point Ethernet Router,ISR4331-V |
||

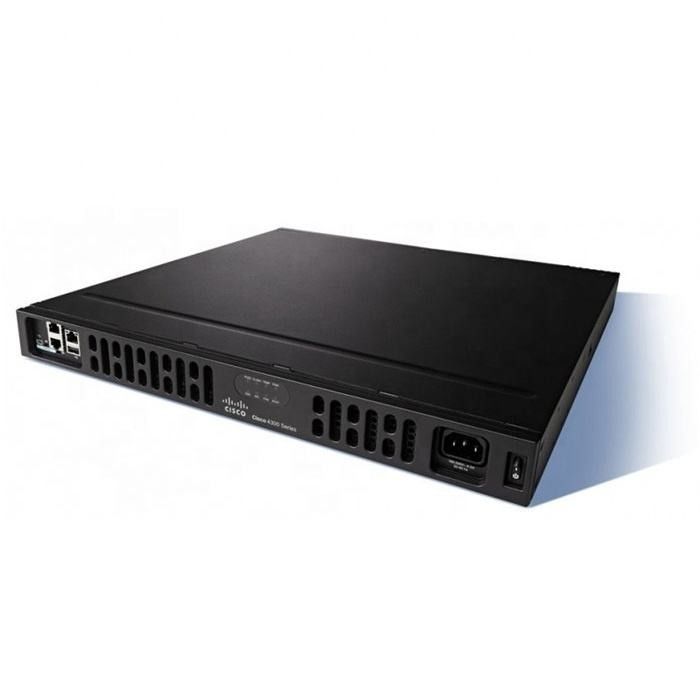

ISR4331-V/K9 Commercial Wifi Access Point Ethernet Router UC Bundle PVDM4-32
Products Overview
ISR4331-V/K9 Commercial Wifi Access Point Ethernet Router UC Bundle PVDM4-32 Standards And Protocols: Wi-Fi 802.11ac, Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802. Function is FireWall, Voip, QoS, VPN. Flash memory 4 GB (default) / 16 GB (maximum), RAM is 4 GB (default) / 16 GB (maximum), Power-supply options:Internal: AC and PoE ISR4331-V/K9 Commercial Wifi Access Point Ethernet Router UC Bundle PVDM4-32
Specification
|
Description
|
ISR4331-V/K9 Commercial Wifi Access Point Ethernet Router UC Bundle PVDM4-32
|
|
Aggregate Throughput
|
100 Mbps to 300 Mbps
|
|
Total onboard WAN or LAN 10/100/1000 ports
|
3 ISR4331-V/K9 Commercial Wifi Access Point Ethernet Router UC Bundle PVDM4-32
|
|
RJ-45-based ports
|
2
|
|
SFP-based ports
|
2
|
|
Enhanced service-module slots
|
1
|
|
Doublewide service-module slots
|
0 ISR4331-V/K9 Commercial Wifi Access Point Ethernet Router UC Bundle PVDM4-32
|
|
NIM slots
|
2
|
|
OIR (all I/O modules)
|
yes
|
|
Onboard ISC slot
|
1
|
|
Default flash memory
|
4 GB ISR4331-V/K9 Commercial Wifi Access Point Ethernet Router UC Bundle PVDM4-32
|
|
Maximum flash memory
|
16 GB
|
|
External USB 2.0 slots (type A)
|
1
|
|
USB console port -type B mini (up to 115.2 kbps)
|
1
|
|
Serial console port - RJ45 (up to 115.2 kbps)
|
1
|
|
Serial auxiliary port - RJ45
|
1 ISR4331-V/K9 Commercial Wifi Access Point Ethernet Router UC Bundle PVDM4-32
|
|
Power-supply options
|
Internal: AC and PoE
|
|
Redundant power supply
|
N/A
|
|
AC input voltage
|
100 to 240 VAC autoranging
|
|
AC input frequency
|
47 to 63 Hz
|
|
AC input surge current
|
60 A peak and less than 5 Arms per half cycle
|
|
Typical power (no modules) (watts)
|
42
|
|
Maximum power with AC power supply (watts)
|
250
|
|
Maximum power with PoE power supply (platform only) (watts)
|
530 ISR4331-V/K9 Commercial Wifi Access Point Ethernet Router UC Bundle PVDM4-32
|
|
Maximum endpoint PoE power available from PoE power supply (watts)
|
250
|
